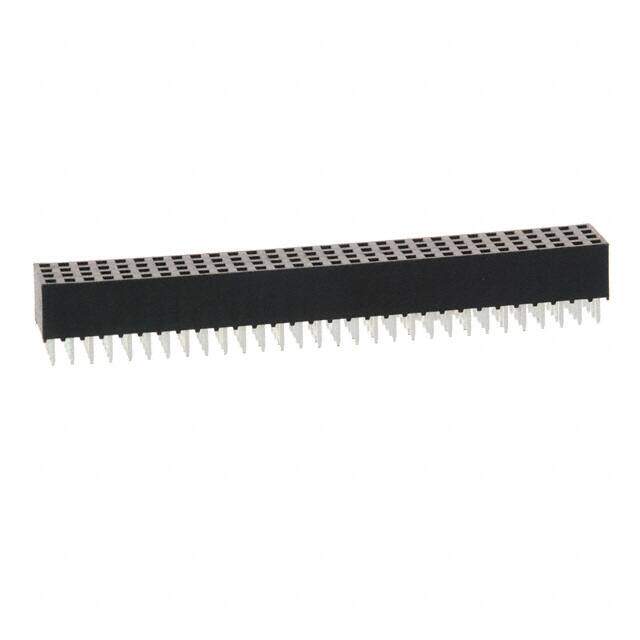

NPRN304EFCN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 2MM QUAD STR 120POS
PDF
/
Inventory: 2263
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2009
Part Status Active
Termination Solder
Connector Type Header
Number of Positions 120
Number of Rows 4
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 2A
Terminal Pitch 2.0066mm
Insulation Height 0.250 6.35mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.362 inch
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.094 2.40mm
Number Of PCB Rows 4
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.315 inch
Contact Gender FEMALE
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dimensions
Plating Thickness 20μin
Contact Finish Thickness - Mating 20.0μin 0.51μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
