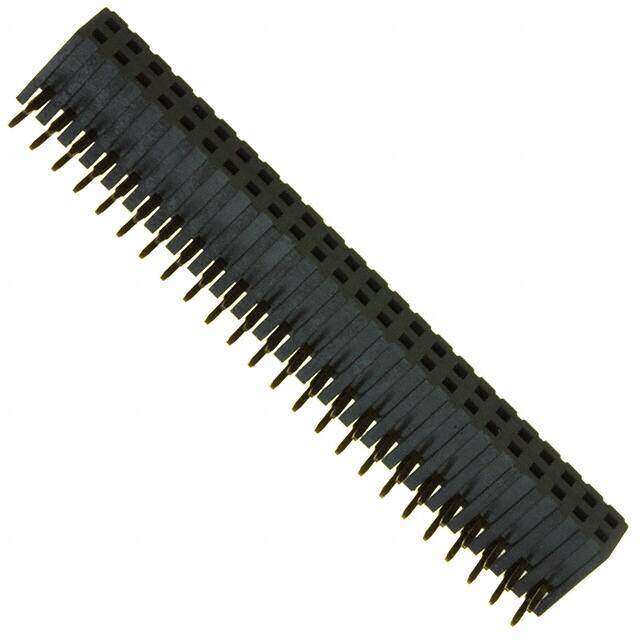

NPPN242FJFN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 48P 0.079 GOLD PCB R/A
PDF
/
Inventory: 3007
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2009
Part Status Active
Termination Solder
Connector Type Header
Number of Positions 48
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.191 4.85mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.89 inch
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.191 inch
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dimensions
Contact Finish Thickness - Mating Flash
Length - Termination 0.118 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
