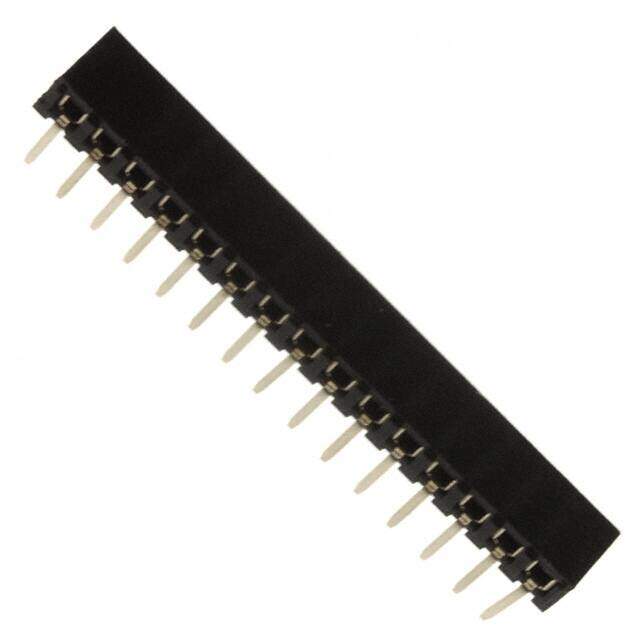

NPPN151FGGN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 2MM SINGLE R/A 15POS
PDF
/
Inventory: 5328
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
UL Flammability Code 94V-0
Contact Length - Post 0.122 3.10mm
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.110 2.79mm
Terminal Pitch 2mm
Current Rating (Amps) 2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature TOP ENTRY
Number of Rows 1
Number of Positions 15
Connector Type Header
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2009
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 4 Weeks
