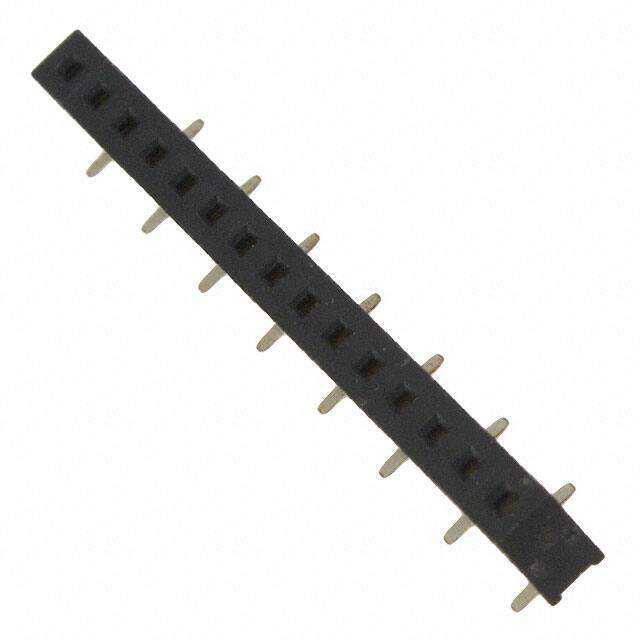

NPPN151BFLC-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 2MM SINGLE SMD 15POS
PDF
/
Inventory: 2272
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2005
Pbfree Code yes
Part Status Active
Termination Solder
Connector Type Header
Number of Positions 15
Number of Rows 1
Voltage - Rated 150V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 2A
Total Number of Contacts 15
Terminal Pitch 2.0066mm
Insulation Height 0.181 4.60mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.094 inch
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dimensions
Height 4.4mm
Length 30.5mm
Width 2.4mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
