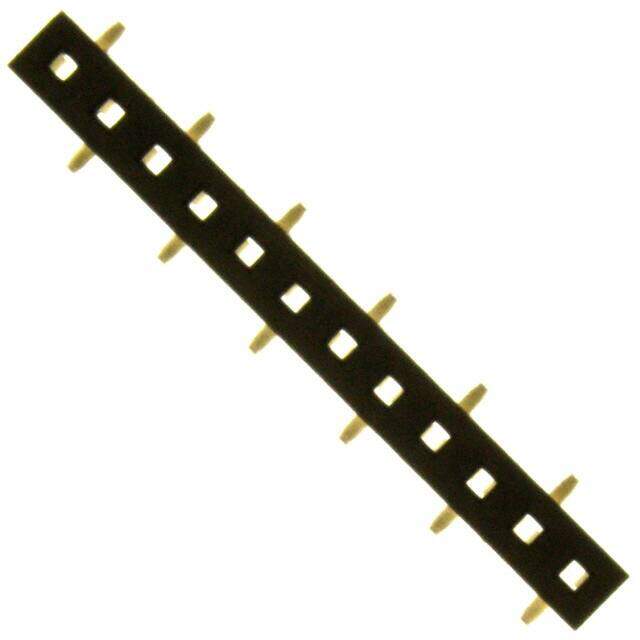

NPPN121BFLC-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 2MM SINGLE SMD 12POS
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.81913
≥100 USD $0.73216
≥500 USD $0.6138
Inventory: 9548
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Number of Rows 1
Voltage - Rated 150V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 2A
Insulation Height 0.181 4.60mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Dimensions
Height 4.4mm
Length 24.5mm
Width 2.4mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
