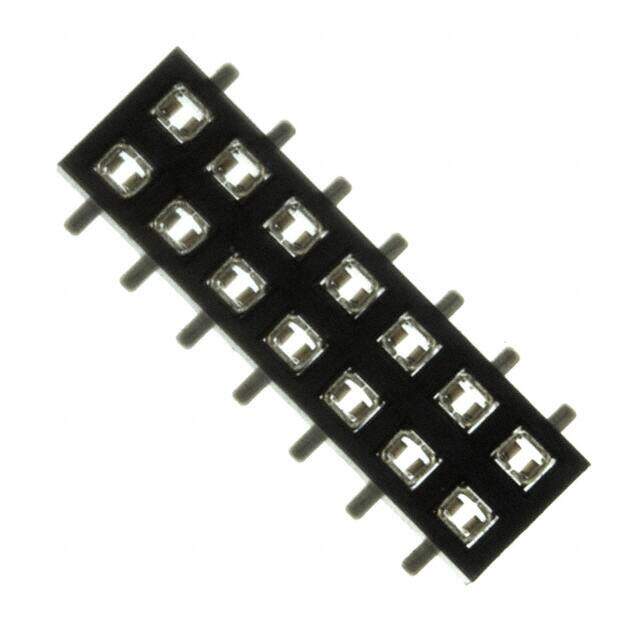

NPPN072GHNP-RC image
Favorite
NPPN072GHNP-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RECEPT 2MM DUAL SMD 14POS
PDF
/
Inventory: 5452
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash
Width 4.2mm
Length 14mm
Height 2.6mm

Technical

Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Body Depth 0.11 inch
Body Breadth 0.165 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.110 2.79mm
Total Number of Contacts 14
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 14
Connector Type Header, Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Guide
Published 2006
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
