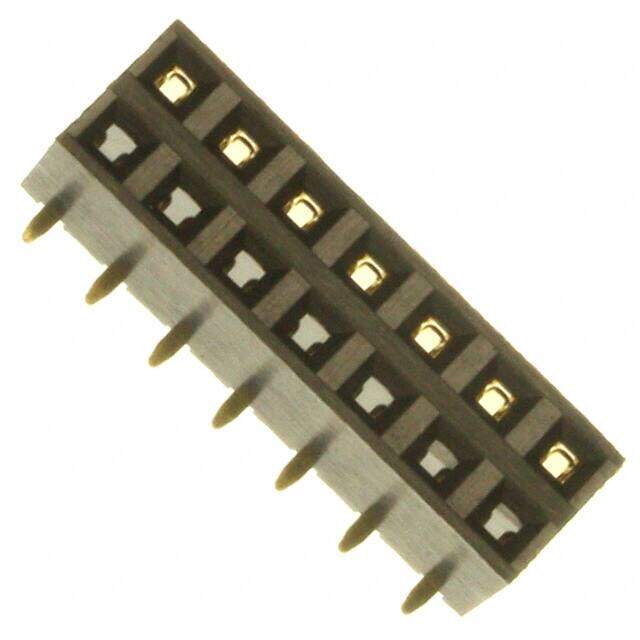

NPPN072FFKP-RC image
Favorite
NPPN072FFKP-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RECEPT 2MM DUAL SMD 14POS
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3376
≥1 USD $1.3376
≥10 USD $1.092221
≥100 USD $1.042633
≥500 USD $0.868859
≥1000 USD $0.744744
≥3000 USD $0.70928
Inventory: 3397
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon

Technical

Operating Temperature -40°C~105°C
Packaging Tube
Published 2006
JESD-609 Code e4
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Total Number of Contacts 14
Insulation Height 0.173 4.40mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
UL Flammability Code 94V-0

Dimensions

Height 4.1mm
Length 14mm
Width 4mm
Contact Finish Thickness - Mating Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
