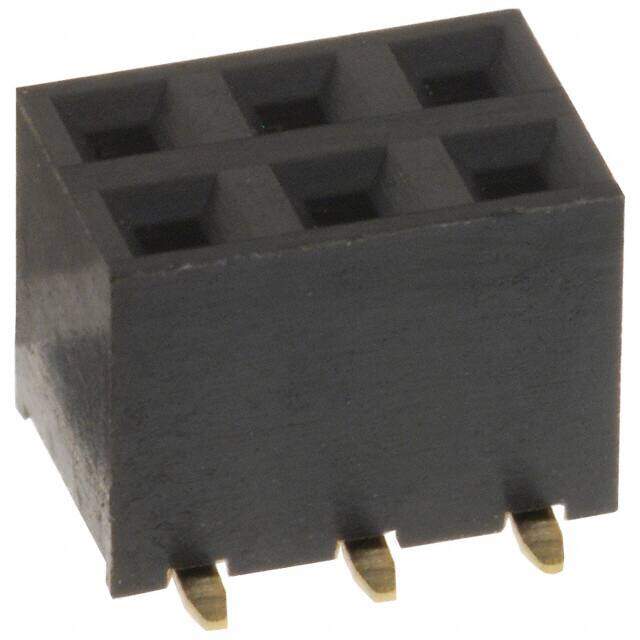

NPPN032FFKS-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 2MM DUAL SMD 6POS
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.67848
≥100 USD $0.609532
≥500 USD $0.49874
≥1000 USD $0.443318
≥3000 USD $0.395824
Inventory: 3765
Minimum: 1
-
+
Technical Details
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2006
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Total Number of Contacts 6
Insulation Height 0.173 4.40mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
UL Flammability Code 94V-0
Dimensions
Height 4.1mm
Length 6mm
Width 4mm
Contact Finish Thickness - Mating Flash
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 11 Weeks
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
