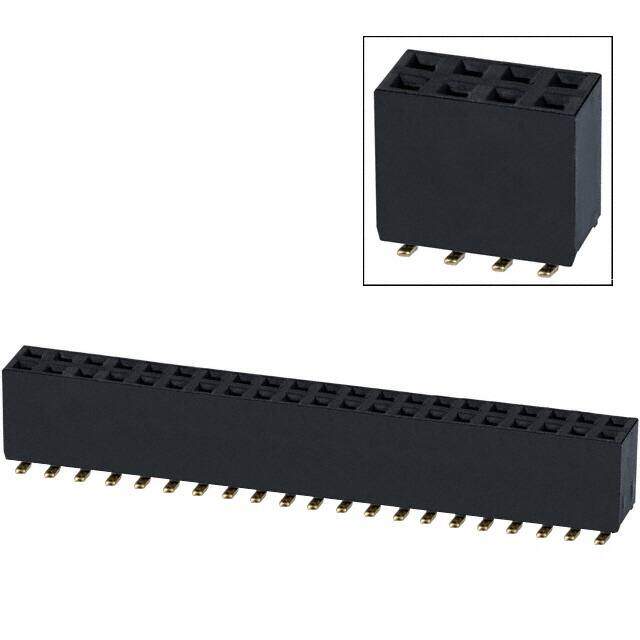

NPPC212KFMS-RC image
Favorite
NPPC212KFMS-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN FMALE 42POS DL .1 GOLD SMD
PDF
/
Inventory: 5329
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon

Technical

Operating Temperature -40°C~125°C
Packaging Tube
Published 2005
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 42
Number of Rows 2
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Total Number of Contacts 42
Insulation Height 0.299 7.60mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.197 inch
Housing Color Black
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING

Dimensions

Height 7.1mm
Length 53.8mm
Width 5mm
Contact Finish Thickness - Mating Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
