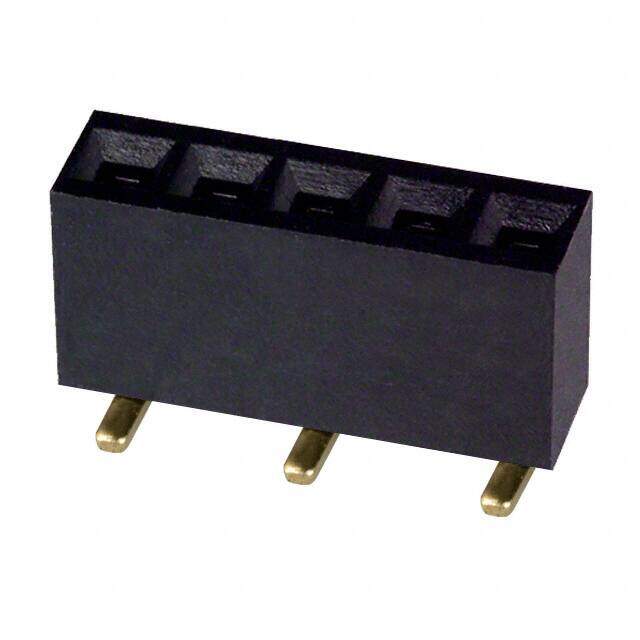

NPPC051KFXC-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN FMALE 5POS .1" SMD GOLD
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.6336
≥100 USD $0.606074
≥500 USD $0.495862
≥1000 USD $0.440757
≥3000 USD $0.393536
Inventory: 1635
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Width 2.5mm
Length 12.7mm
Height 7.1mm
Technical
Polarization Key POLARIZED HOUSING
Housing Color Black
Body Breadth 0.098 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.280 7.10mm
Total Number of Contacts 5
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Number of Positions 5
Connector Type Header, Top or Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2009
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 5 Weeks
