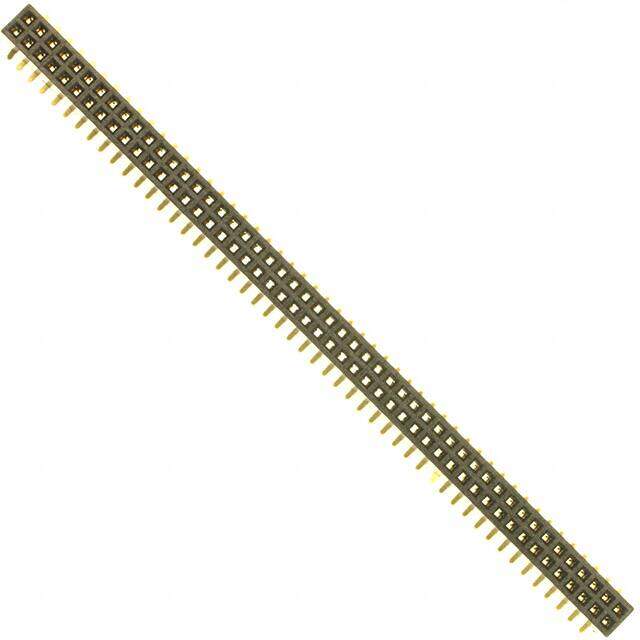

LPPB502NFSS-RC
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HEADR .050 100PS DL SMD AU
PDF
/
Inventory: 2993
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~125°C
Packaging Tube
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Top or Bottom Entry
Number of Positions 100
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Total Number of Contacts 100
Insulation Height 0.183 4.65mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Depth 0.177 inch
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 3.9116 mm
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
