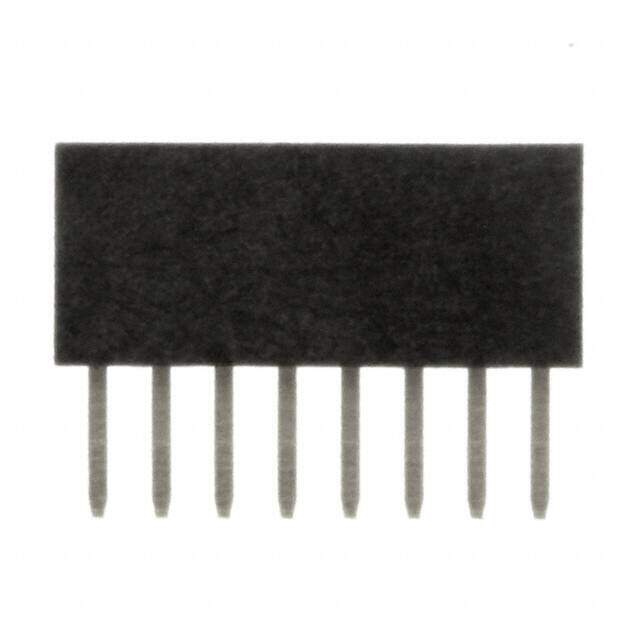

LPPB081NFFN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 8POS 0.05 GOLD PCB
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.056
≥1 USD $1.056
≥10 USD $0.836158
≥100 USD $0.799876
≥500 USD $0.654412
≥1000 USD $0.581698
≥3000 USD $0.519376
Inventory: 9482
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.177 4.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
