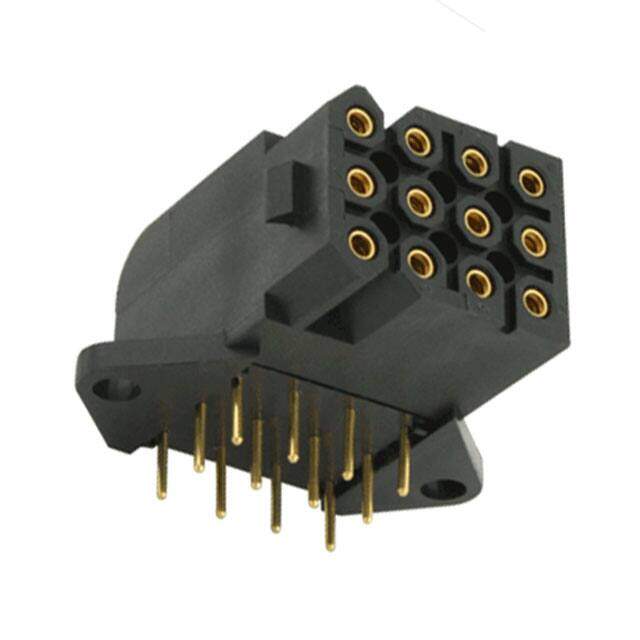

SMS12GE5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 12POS 0.2 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $48.06
Unit Price: USD $48.0568
≥1 USD $48.0568
Inventory: 196
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Thermoplastic, Glass Filled
Shell Material GLASS FILLED THERMOPLAST
Housing Material Thermoplastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series SMS
Feature Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Number of Rows 4
Voltage - Rated 220V
Additional Feature ROHS COMPLIANT, ELV COMPLIANT
HTS Code 8536.90.10
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Ingress Protection IP40
Terminal Pitch 5.08mm
Depth 29.5mm
Insulation Height 0.677 17.20mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 13A
Pitch - Mating 0.200 5.08mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.200 (5.08mm)
Contact Length - Post 0.177 4.50mm
Number Of PCB Rows 3
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.677 inch
Empty Shell NO
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.2 inch
Max Current Rating 7.5A
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 5.08 mm
Durability 500 Cycles
Dimensions
Length 35.2mm
Contact Finish Thickness - Mating 16.0μin 0.41μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
