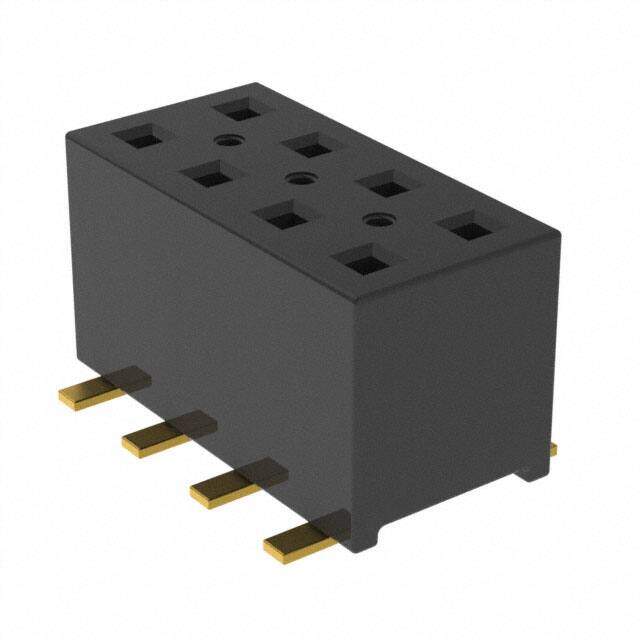

TLE-104-01-G-DV-K image
Favorite
TLE-104-01-G-DV-K image
Favorite

TLE-104-01-G-DV-K

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Conn Socket Strip SKT 8 POS 2mm Solder ST SMD Tube
PDF
/
Inventory: 5948
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3.2A per Contact
Total Number of Contacts 8
Orientation Vertical
Depth 4mm
Insulation Height 0.177 4.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Fastening Type Push-Pull
Gender Female
Number of Rows 2
Number of Positions 8
Connector Type Receptacle, Pass Through
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series TLE
Published 2016
Packaging Tube
Operating Temperature -55°C~125°C

Dimensions

Length 8mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant

Physical

Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
