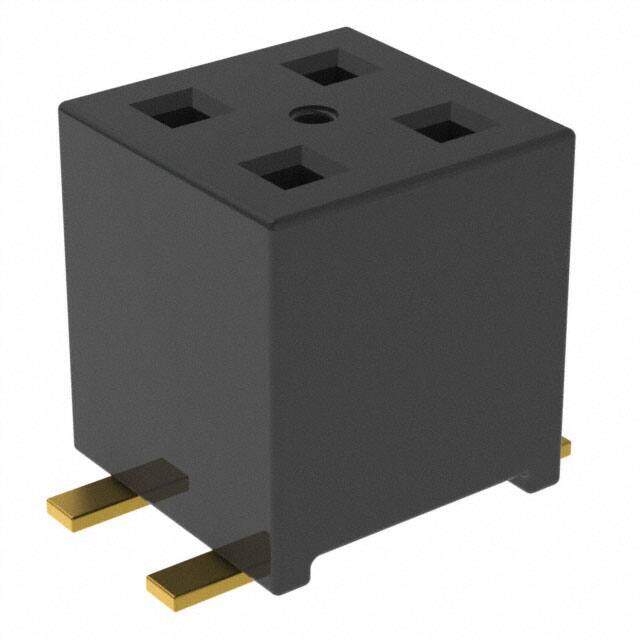

TLE-102-01-G-DV-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 4 POS 2mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $1.85
Unit Price: USD $1.848
≥1 USD $1.848
≥10 USD $1.4344
≥100 USD $1.1528
Inventory: 822
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 1 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series TLE
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Pass Through
Number of Positions 4
Number of Rows 2
Gender Receptacle
Additional Feature TAPE & REEL PACKAGING
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.2A per Contact
Total Number of Contacts 4
Orientation Straight
Depth 4mm
Insulation Height 0.177 4.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Housing Color Black
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Number of Conductors ONE
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Length 4mm
