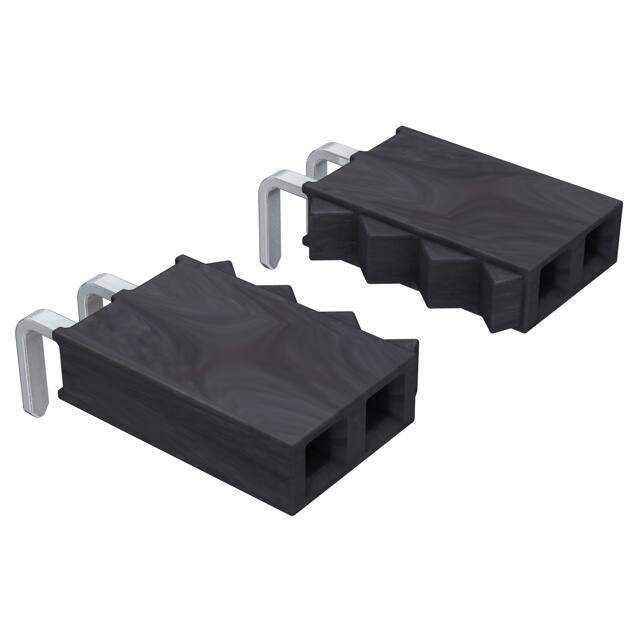

SSW-143-02-S-S-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 43POS 0.1 GOLD PCB R/A
PDF
/
Inventory: 3082
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2016
Series SSW
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Termination Solder
Connector Type Receptacle
Number of Positions 43
Number of Rows 1
Gender Female
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5.7A per Contact
Terminal Pitch 2.54mm
Insulation Height 0.095 2.41mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.100 2.54mm
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.095 inch
UL Flammability Code 94V-0
Housing Color Black
Body Depth 0.335 inch
Dimensions
Height 2.41mm
Length 110mm
Width 8.51mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
