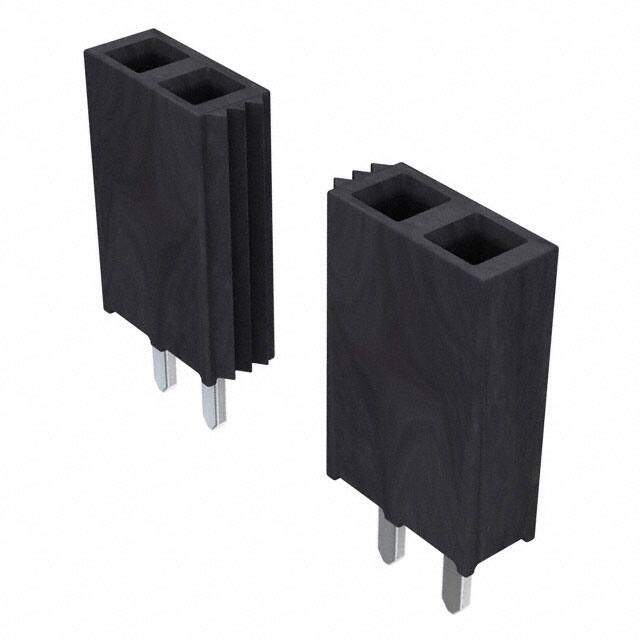

SSW-117-01-S-S image
Favorite
SSW-117-01-S-S image
Favorite

SSW-117-01-S-S

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT .100 17POS SNGL GOLD
PDF
/
Buying Options
Total Price: USD $3.41
Unit Price: USD $3.4144
≥1 USD $3.4144
≥10 USD $3.10024
≥100 USD $2.731432
≥500 USD $2.321722
≥1000 USD $1.98029
Inventory: 65
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Width 2.41mm
Length 43.7mm
Height 8.51mm

Technical

Housing Color Black
UL Flammability Code 94V-0
Contact Finish - Post Tin
Contact Length - Post 0.104 2.64mm
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.335 8.51mm
Terminal Pitch 2.54mm
Current Rating (Amps) 5.7A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Gender Female
Number of Rows 1
Number of Positions 17
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SSW
Published 2000
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
