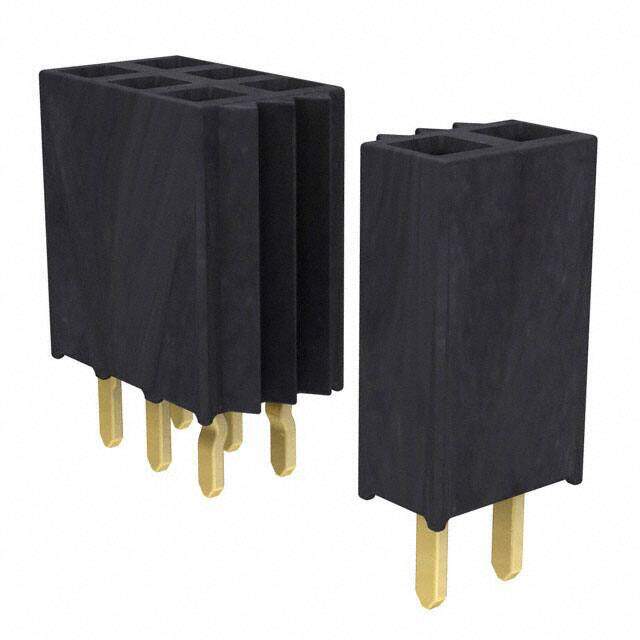

SSW-110-01-G-D-LL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100" 20POS DUAL GOLD
PDF
/
Buying Options
Total Price: USD $3.26
Unit Price: USD $3.256
≥1 USD $3.256
≥10 USD $3.0184
≥100 USD $2.5608
≥500 USD $2.2792
≥1000 USD $1.707209
≥3000 USD $1.487209
Inventory: 71
Minimum: 1
-
+
Technical Details
Technical
Pbfree Code yes
JESD-609 Code e4
Series SSW
Published 2013
Packaging Bulk
Operating Temperature -55°C~125°C
Max Current Rating 6.9A
Max Voltage Rating (AC) 550V
Mating Contact Pitch 0.1 inch
Contact Resistance 10mOhm
Lead Length 2.64mm
Housing Color Black
Body Breadth 0.195 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Lead Pitch 2.54mm
Number Of PCB Rows 2
Contact Length - Post 0.104 2.64mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Voltage - Rated AC 465V
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.335 8.51mm
Depth 4.95mm
Terminal Pitch 0.635mm
Orientation Straight
Current Rating (Amps) 5.7A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 655V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature LOCKING LEAD
Gender Female
Number of Rows 2
Number of Positions 20
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Length 25.91mm
