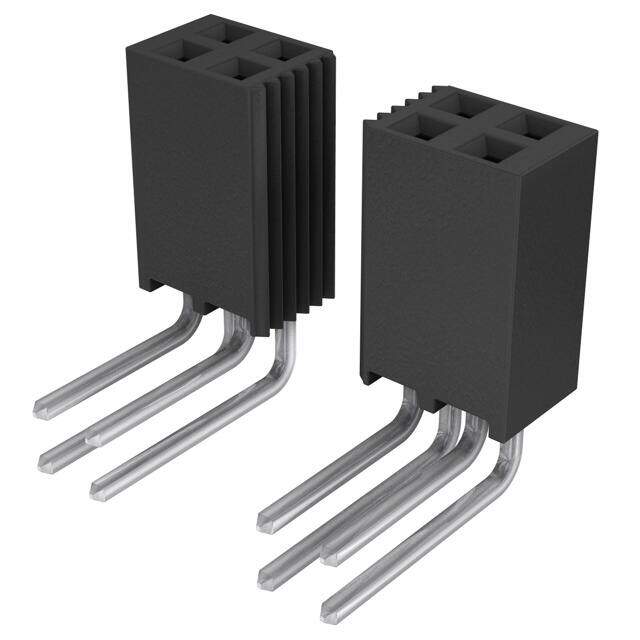

SSQ-141-03-T-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 82POS 0.1 TIN PCB R/A
PDF
/
Inventory: 9573
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series SSQ
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 82
Number of Rows 2
Gender Female
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 655V
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.3A per Contact
Insulation Height 0.195 4.95mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 465V
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.300 7.62mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.195 inch
Housing Color Black
Lead Length 7.62mm
Body Depth 0.335 inch
Contact Resistance 10mOhm
Mating Contact Pitch 0.1 inch
Dimensions
Height 4.95mm
Length 105mm
Width 8.51mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
