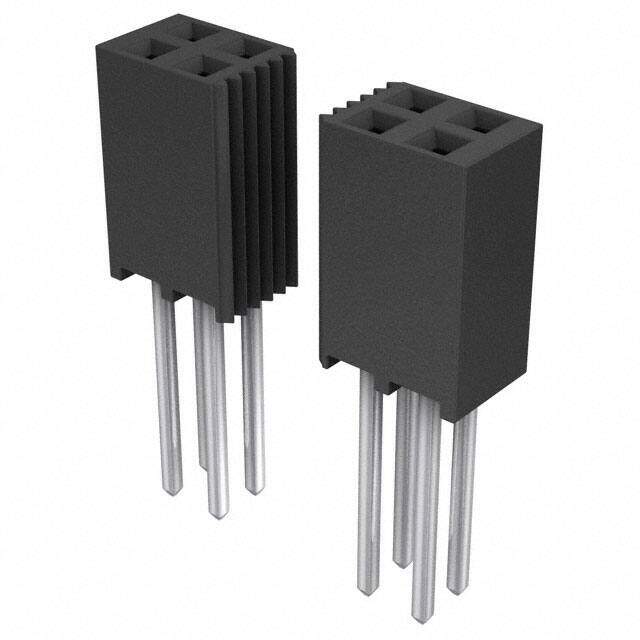

SSQ-125-03-S-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100 50POS DUAL GOLD
PDF
/
Inventory: 1774
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Width 4.95mm
Length 64mm
Height 8.51mm
Technical
Withdrawl Force-Min 1.39 N
Insertion Force-Max 1.668 N
Mating Contact Pitch 0.1 inch
Contact Resistance 10mOhm
Body Depth 0.335 inch
Housing Color Black
Body Breadth 0.195 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.394 10.00mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.335 8.51mm
Current Rating (Amps) 6.3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TIGER BUY CONTACT
Voltage - Rated 550VAC
Gender Female
Number of Rows 2
Number of Positions 50
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Series SSQ
Published 2011
Packaging Bulk
Operating Temperature -55°C~125°C
