SSQ-118-03-G-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

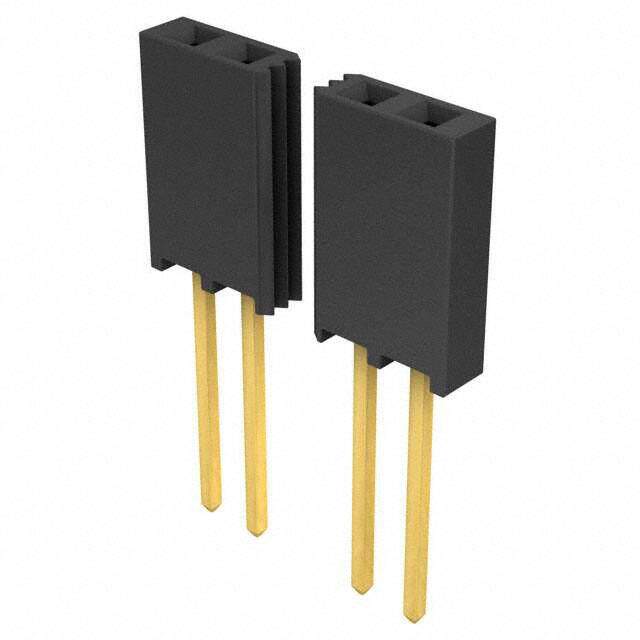

SAMTEC SSQ-118-03-G-S Board-To-Board Connector, Single, SSQ Series, 18 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Inventory: 6559
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Plating Thickness 20μin
Width 2.41mm
Length 46.2mm
Height 8.51mm
Technical
Body Depth 0.335 inch
Housing Color Black
Contact Gender FEMALE
Body Breadth 0.095 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.394 10.00mm
Reliability COMMERCIAL
Voltage - Rated AC 465V
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.335 8.51mm
Terminal Pitch 2.54mm
Current Rating (Amps) 6.3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 655V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TIGER BUY CONTACT
Number of Rows 1
Number of Positions 18
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SSQ
Published 2011
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Alternative Model
