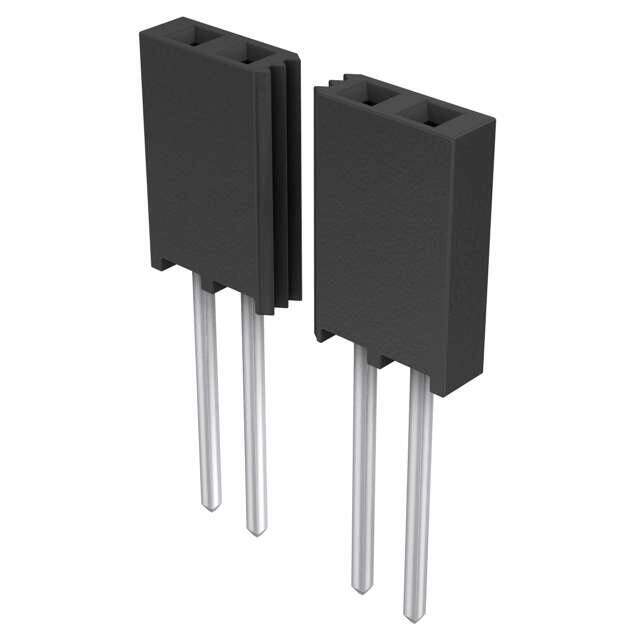

SSQ-109-03-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100 9POS SNGL TIN
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.07272
≥100 USD $0.958936
≥500 USD $0.799128
≥1000 USD $0.684974
≥3000 USD $0.607341
Inventory: 558
Minimum: 1
-
+
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series SSQ
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle
Number of Positions 9
Number of Rows 1
Gender Female
Additional Feature TIGER BUY CONTACT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 655V
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.3A per Contact
Terminal Pitch 2.54mm
Insulation Height 0.335 8.51mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 465V
Reliability COMMERCIAL
Contact Length - Post 0.394 10.00mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Housing Color Black
Body Depth 0.335 inch
Dimensions
Height 8.51mm
Length 23.4mm
Width 2.41mm
Plating Thickness 200μin
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
