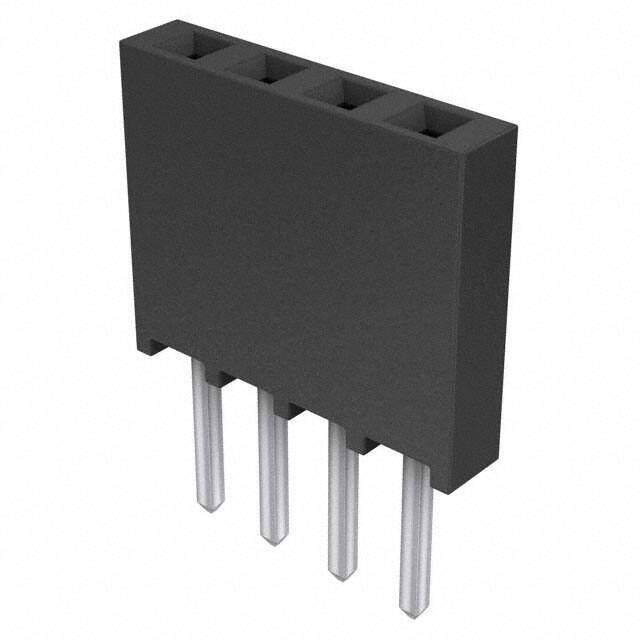

SSQ-104-02-T-S image
Favorite
SSQ-104-02-T-S image
Favorite

SSQ-104-02-T-S

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.884823
≥1 USD $0.884823
≥10 USD $0.834738
≥100 USD $0.787488
≥500 USD $0.742915
≥1000 USD $0.700865
Inventory: 8629
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Plating Thickness 200μin
Width 2.41mm
Length 10.67mm

Technical

Max Current Rating 7.6A
Max Voltage Rating (AC) 550V
Contact Resistance 10mOhm
Housing Color Black
Body Breadth 0.095 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.194 4.93mm
Reliability COMMERCIAL
Voltage - Rated AC 465V
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.335 8.51mm
Depth 2.41mm
Orientation Straight
Current Rating (Amps) 6.3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Voltage - Rated DC 655V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature TIGER BUY CONTACT
Gender Female
Number of Rows 1
Number of Positions 4
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Series SSQ
Published 2011
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
