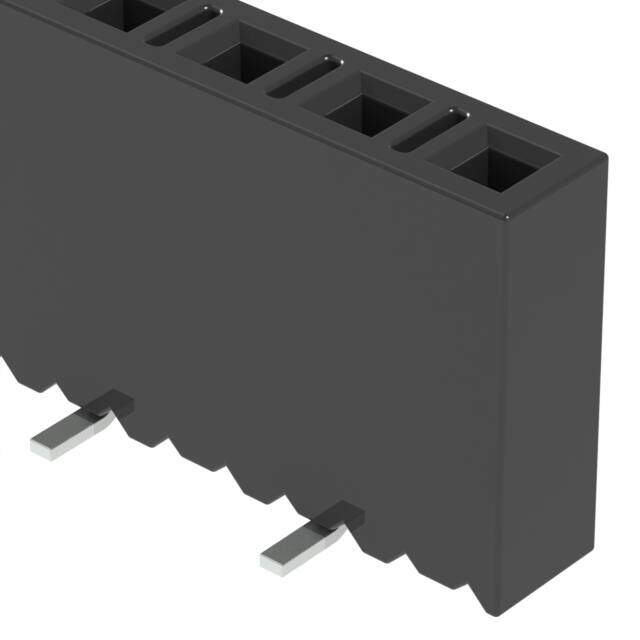

SSM-150-L-SV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100" 50POS SNGL VERT
PDF
/
Buying Options
Total Price: USD $6.77
Unit Price: USD $6.7672
≥1 USD $6.7672
≥10 USD $6.3184
≥100 USD $5.8432
≥500 USD $5.3856
≥1000 USD $4.5408
≥3000 USD $3.845618
Inventory: 1696
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 2.54mm
Length 127mm
Height 7.37mm
Technical
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 50
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.290 7.37mm
Pitch 2.54mm
Current Rating (Amps) 5.2A per Contact
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 405VAC 572VDC
Gender Receptacle
Number of Rows 1
Color Black
Number of Positions 50
Connector Type Receptacle, Pass Through
Termination Solder
Part Status Active
Series SSM
Published 2000
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 2 Weeks
