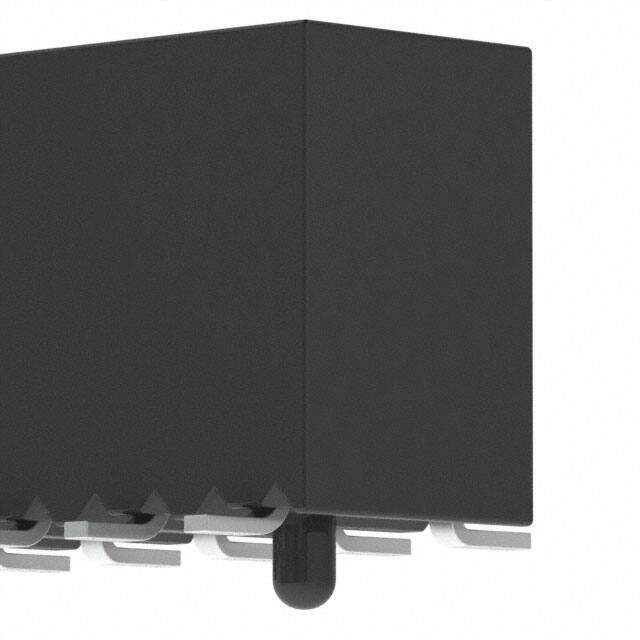

SSM-110-S-DV-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 20 POS 2.54mm Solder ST SMD Tube
PDF
/
Inventory: 2329
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2016
Series SSM
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Pass Through
Number of Positions 20
Number of Rows 2
Gender Female
Voltage - Rated 405VAC 572VDC
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5.2A per Contact
Total Number of Contacts 20
Orientation Straight
Depth 5.08mm
Insulation Height 0.290 7.37mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 475V
Max Current Rating 6.9A
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
PCB Contact Row Spacing 5.6896 mm
Durability 50 Cycles
Insertion Force-Max 1.39 N
Withdrawl Force-Min .556 N
Dimensions
Length 25.4mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
