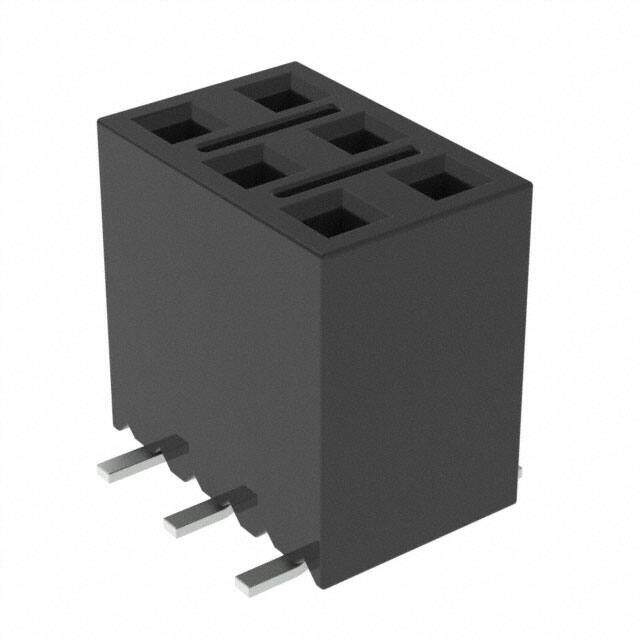

SSM-103-S-DV-BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 6 POS 2.54mm Solder ST SMD Tube
PDF
/
Inventory: 5252
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 7.62mm
Technical
Max Current Rating 6.9A
Max Voltage Rating (AC) 475V
Contact Resistance 10mOhm
Contact Finish - Post Tin
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.290 7.37mm
Depth 5.08mm
Orientation Straight
Total Number of Contacts 6
Current Rating (Amps) 5.2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature E.L.P., TIGER CLAW
Voltage - Rated 405VAC 572VDC
Gender Female
Number of Rows 2
Number of Positions 6
Connector Type Receptacle, Bottom Entry
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SSM
Published 2016
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
