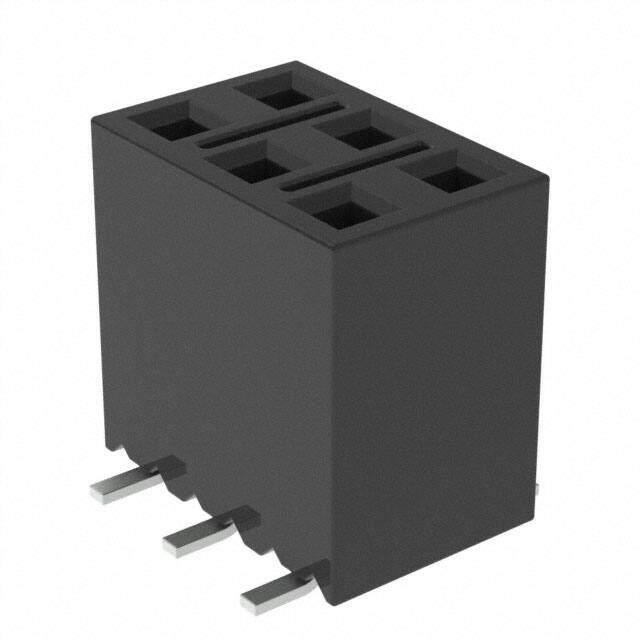

SSM-103-L-DV-BE-LC-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Buying Options
Total Price: USD $2.58
Unit Price: USD $2.5784
≥1 USD $2.5784
≥10 USD $2.1296
≥100 USD $1.7688
Inventory: 351
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.290 7.37mm
Current Rating (Amps) 5.2A per Contact
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 405VAC 572VDC
Gender Female
Number of Rows 2
Number of Positions 6
Connector Type Receptacle, Bottom Entry
Termination Solder
Part Status Active
Feature Board Lock, Pick and Place
Series SSM
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
