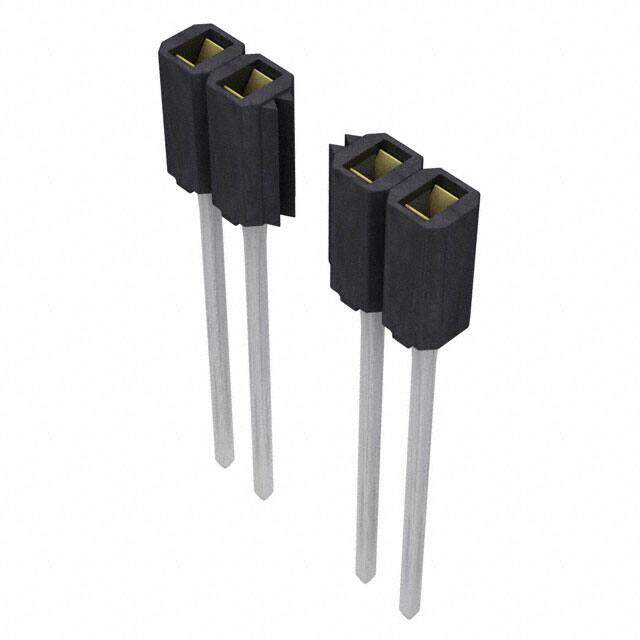

SSA-113-W-G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 13 POS 2.54mm Solder ST Thru-Hole Bulk
PDF
/
Inventory: 8361
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyethylene Terephthalate (PET), Polyester
Housing Material Polyethylene
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2003
Series SSA
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Wrap
ECCN Code EAR99
Connector Type Receptacle, Breakaway
Number of Positions 13
Number of Rows 1
Gender Female
Voltage - Rated 1000V
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.230 5.85mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.656 16.66mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Housing Color Black
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Max Voltage Rating (AC) 1kV
Insertion Force-Max 2.78 N
Dimensions
Length 33.02mm
Width 2.54mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
