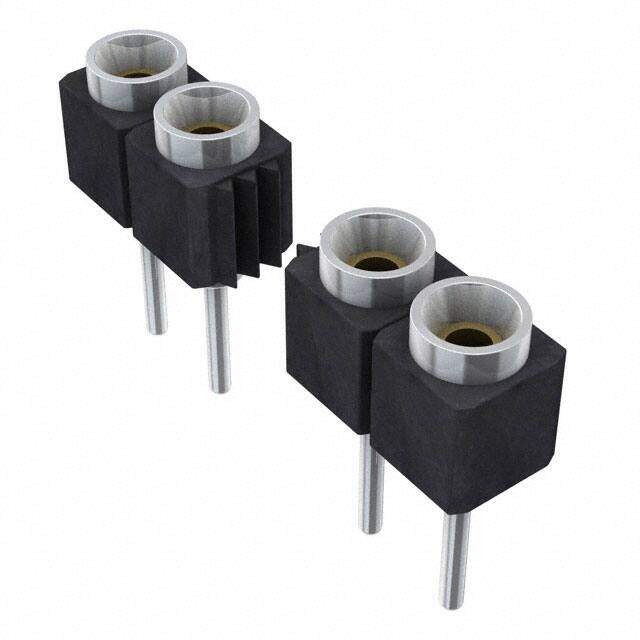

SS-125-T-2-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
WITH NON-FLUSH Rectangular Connector Receptacle
PDF
/
Inventory: 6933
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2008
Series SS
JESD-609 Code e3
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 25
Number of Rows 1
Additional Feature WITH NON-FLUSH
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Straight
Terminal Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Reach Compliance Code not_compliant
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Body Length or Diameter 2.5 inch
Contact Length - Post 0.125 3.18mm
Number of Contacts 25
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Housing Color Black
Contact Resistance 10mOhm
Device Socket Type IC SOCKET
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
