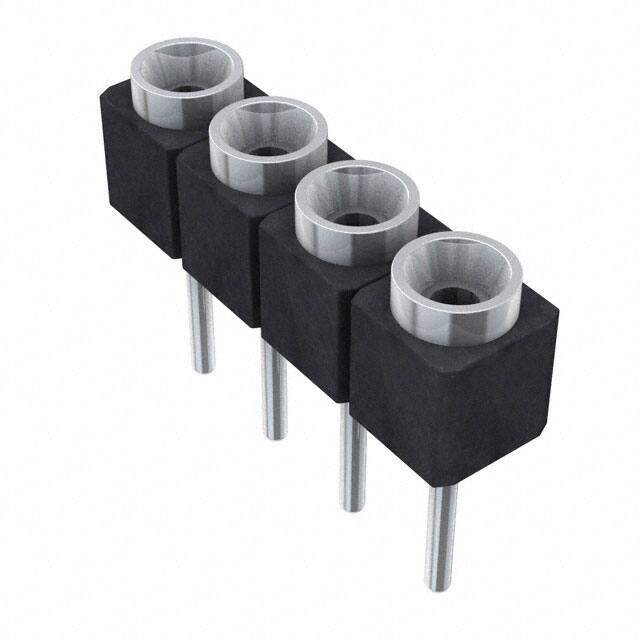

SS-104-TT-2-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Female Socket
PDF
/
Inventory: 5242
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series SS
JESD-609 Code e3
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 4
Number of Rows 1
Gender Female
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Female Socket
Insulation Height 0.300 7.62mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Contact Length - Post 0.125 3.18mm
Number of Contacts 4
PCB Contact Pattern RECTANGULAR
Housing Color Black
Device Socket Type IC SOCKET
Dimensions
Height 3.3mm
Length 10.2mm
Width 2.54mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
