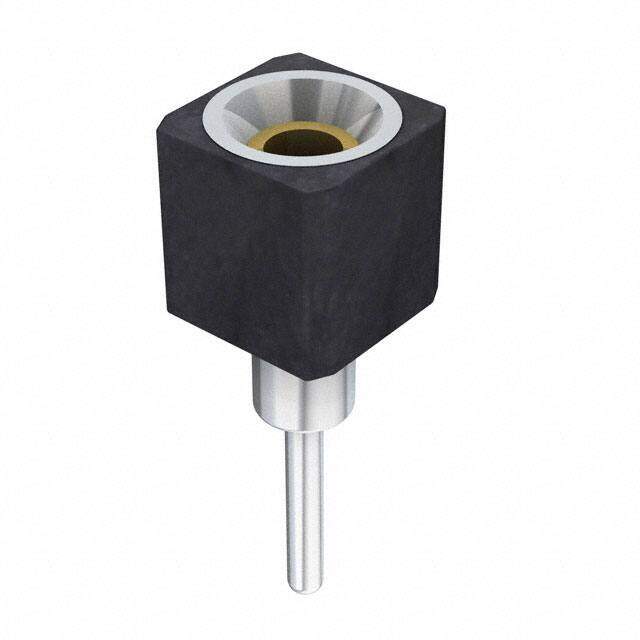

SS-101-T-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100 1POS GOLD T/H
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.2904
≥1 USD $0.2904
≥10 USD $0.2464
≥100 USD $0.191576
≥500 USD $0.16419
≥1000 USD $0.136822
≥3000 USD $0.117269
Inventory: 653
Minimum: 1
-
+
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series SS
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 1
Number of Rows 1
Gender Female
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.300 7.62mm
Style Board to Board
Number of Positions Loaded All
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.125 3.18mm
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Housing Color Black
Rated Current (Signal) 1A
Polarization Key POLARIZED HOUSING
Insertion Force-Max 4.448 N
Dimensions
Height 2.54mm
Length 2.54mm
Width 2.54mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
