SQW-148-01-L-D-VS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

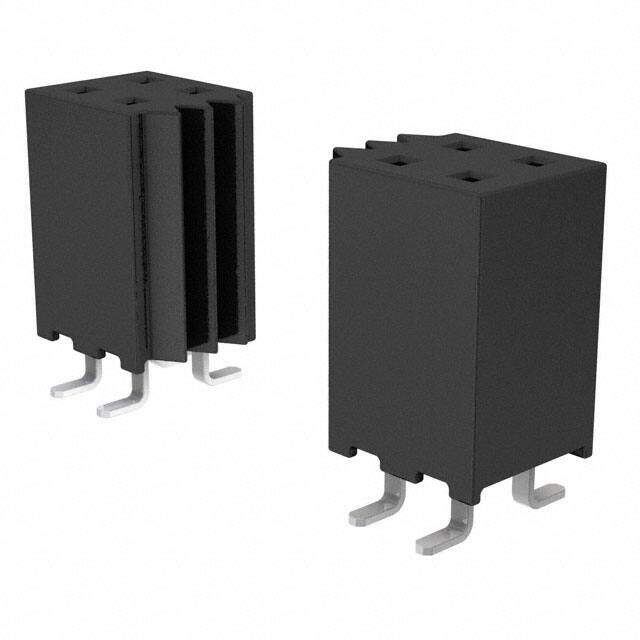

SAMTEC SQW-148-01-L-D-VS Board-To-Board Connector, SQW Series, 96 Contacts, Receptacle, 2 mm, Surface Mount, 2 Rows
PDF
/
Inventory: 7066
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 4mm
Length 96.3mm
Height 6.35mm
Technical
Housing Color Black
UL Flammability Code 94V-0
Contact Gender FEMALE
Contact Finish - Post Tin
Lead Pitch 2mm
Row Spacing - Mating 0.079 (2.00mm)
Voltage - Rated AC 500V
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.300 7.62mm
Total Number of Contacts 96
Current Rating (Amps) 3.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature FLEXYZ, TIGER BUY CONTACT
Number of Rows 2
Number of Positions 96
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Series SQW
Published 2009
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
