SQW-120-01-L-Q
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

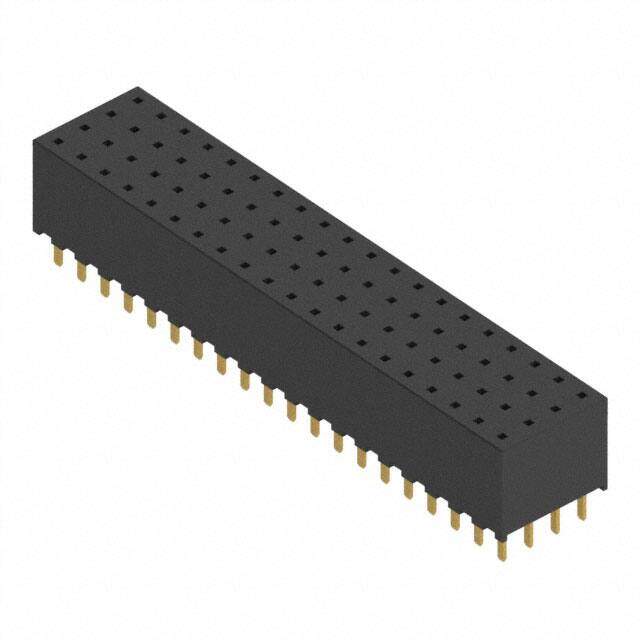

SAMTEC SQW-120-01-L-Q Board-To-Board Connector, SQW Series, Through Hole, Receptacle, 80 Contacts, 2 mm
PDF
/
Buying Options
Total Price: USD $9.94
Unit Price: USD $9.944
≥1 USD $9.944
≥10 USD $9.196
≥100 USD $8.6944
≥500 USD $8.3776
≥1000 USD $7.81
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Length 40.12mm
Technical
PCB Contact Row Spacing 2.0066 mm
Polarization Key POLARIZED HOUSING
Max Current Rating 5A
Max Voltage Rating (AC) 500V
Mating Contact Pitch 0.079 inch
Contact Resistance 10mOhm
Contact Gender FEMALE
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 4
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Voltage - Rated AC 500V
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.250 6.35mm
Depth 8mm
Orientation Straight
Current Rating (Amps) 3.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature FLEXYZ, TIGER BUY CONTACT
Number of Rows 4
Number of Positions 80
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SQW
Published 2009
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
