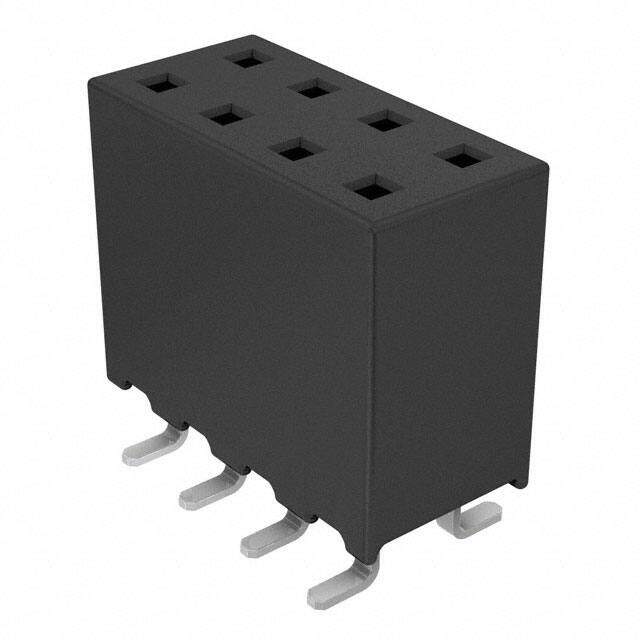

SQW-104-01-F-D-VS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 8 POS 2mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.8304
≥1 USD $1.8304
≥10 USD $1.496
≥100 USD $1.2672
≥500 USD $1.1264
≥1000 USD $1.045
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2013
Series SQW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 8
Number of Rows 2
Gender Female
Additional Feature FLEXYZ, TIGER BUY CONTACT
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.8A per Contact
Total Number of Contacts 8
Orientation Straight
Depth 4.74mm
Insulation Height 0.300 7.62mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Voltage - Rated AC 500V
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin
UL Flammability Code 94V-0
Contact Resistance 10mOhm
Max Voltage Rating (AC) 500V
Dimensions
Length 8.12mm
Contact Finish Thickness - Mating 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
