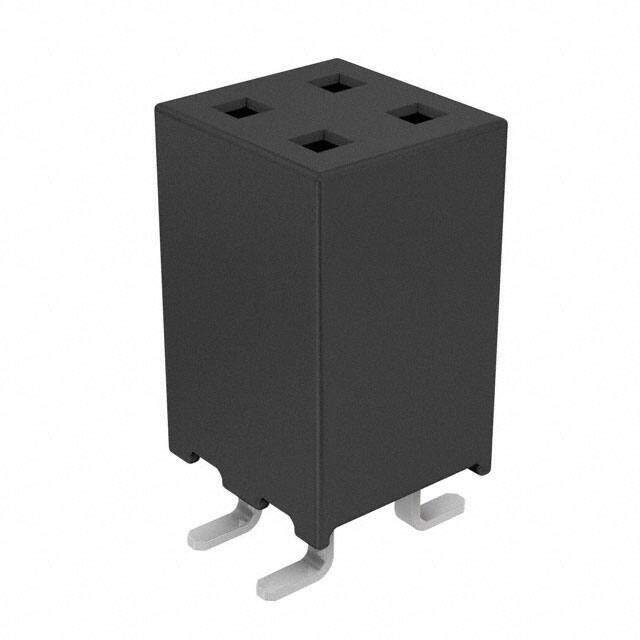

SQW-102-01-F-D-VS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 2MM 4POS GOLD
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.5048
≥1 USD $1.5048
≥10 USD $1.1704
≥100 USD $0.9416
≥500 USD $0.8008
≥1000 USD $0.748
Inventory: 167
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating Flash
Length 4.12mm
Technical
Max Voltage Rating (AC) 500V
Contact Resistance 10mOhm
Housing Color Black
Contact Finish - Post Tin
Row Spacing - Mating 0.079 (2.00mm)
Voltage - Rated AC 500V
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.300 7.62mm
Depth 4mm
Orientation Vertical
Total Number of Contacts 4
Current Rating (Amps) 3.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature FLEXYZ, TIGER BUY CONTACT
Gender Female
Number of Rows 2
Number of Positions 4
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SQW
Published 2011
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 0 Weeks
