SQT-104-01-L-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

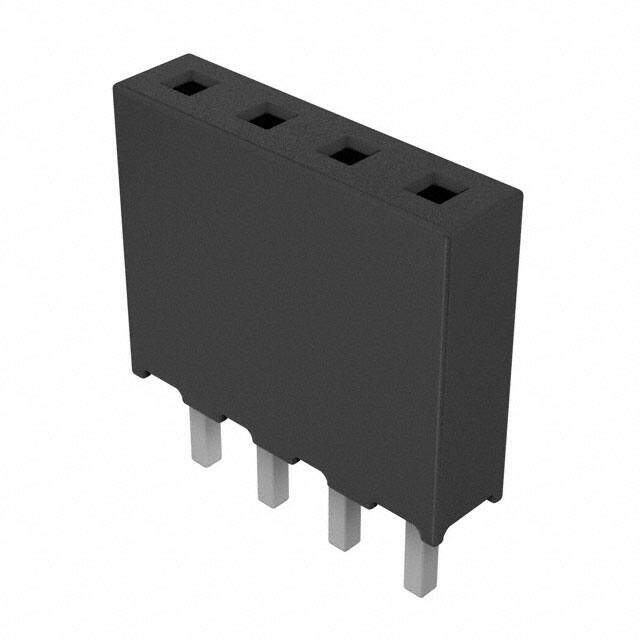

Samtec SQT Series 2mm Pitch 4 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $1.06656
≥100 USD $0.95304
≥500 USD $0.7942
≥1000 USD $0.680742
≥3000 USD $0.603592
Inventory: 1834
Minimum: 1
-
+
Technical Details
Technical
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 4
Number of Rows 1
Voltage - Rated 450VAC
Additional Feature FLEXYZ, TIGER BUY CONTACT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5.1A per Contact
Orientation Straight
Depth 2mm
Insulation Height 0.250 6.35mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 5.5A
JESD-609 Code e3
Series SQT
Published 2007
Packaging Bulk
Operating Temperature -55°C~125°C
Insertion Force-Max .3058 N
Polarization Key POLARIZED HOUSING
Max Current Rating 5.5A
Max Voltage Rating (AC) 450V
Mating Contact Pitch 0.079 inch
Contact Resistance 10mOhm
Lead Length 2.29mm
Housing Color Black
Contact Gender FEMALE
Body Breadth 0.079 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Lead Pitch 2mm
Number Of PCB Rows 1
Contact Length - Post 0.090 2.29mm
Reliability COMMERCIAL
Voltage - Rated AC 450V
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 0 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Length 8.3mm
