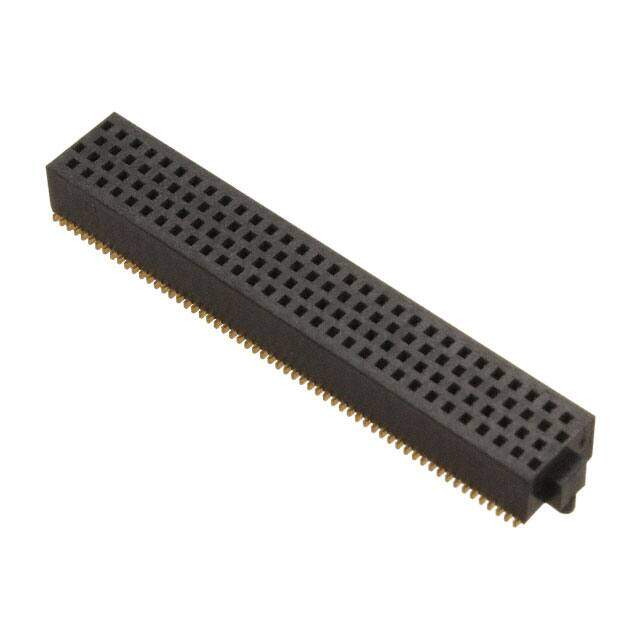

SOLC-130-02-L-Q-A-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 120 POS 0.635mm Solder ST SMD T/R
PDF
/
Inventory: 2520
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Mounting Option 1 LOCKING
Board Mounting Option PEG
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series FOURRAY? SOLC
JESD-609 Code e4
Feature Board Guide, Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 120
Number of Rows 4
Gender Female
Additional Feature FOURRAY, TIGER BUY CONTACT
Fastening Type Push-Pull
Contact Finish - Mating Gold
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.4A per Contact
Total Number of Contacts 120
Terminal Pitch 1.27mm
Insulation Height 0.160 4.06mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Body Length or Diameter 1.52 inch
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.25 inch
Body Depth 0.182 inch
Contact Resistance 10mOhm
Mating Contact Pitch 0.05 inch
PCB Contact Row Spacing 0.05 mm
Durability 100 Cycles
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
