SMS-113-01-G-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

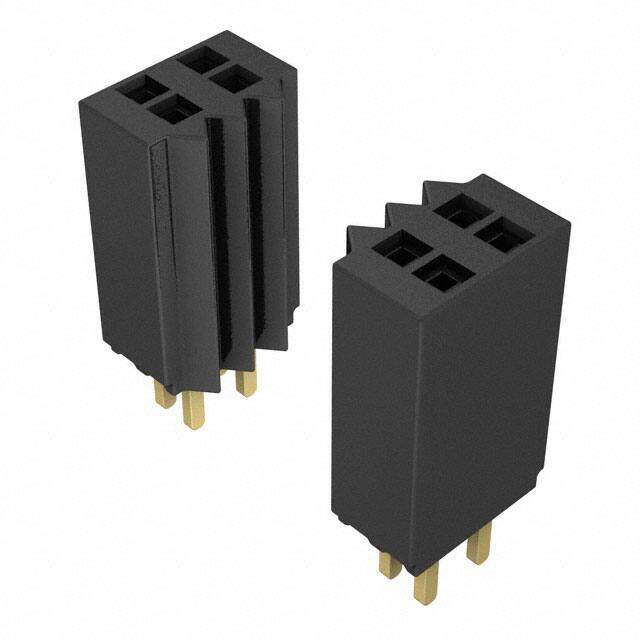

SAMTEC SMS-113-01-G-D Board-To-Board Connector, SMS Series, 26 Contacts, Receptacle, 1.27 mm, Through Hole, 2 Rows
PDF
/
Buying Options
Total Price: USD $4.18
Unit Price: USD $4.18
≥1 USD $4.18
≥10 USD $3.7752
≥100 USD $3.5112
≥500 USD $3.344
≥1000 USD $3.043938
Inventory: 92
Minimum: 1
-
+
Technical Details
Technical
Number of Rows 2
Additional Feature TIGER BUY
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5A per Contact
Orientation Straight
Depth 5.59mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.100 2.54mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender FEMALE
Contact Resistance 10mOhm
Mating Contact Pitch 0.05 inch
Number of Positions 26
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SMS
Published 2001
Packaging Tube
Operating Temperature -55°C~125°C
Max Current Rating 1A
Withdrawl Force-Min 1.668 N
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Dimensions
Length 16.51mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Alternative Model
