SMS-106-01-G-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

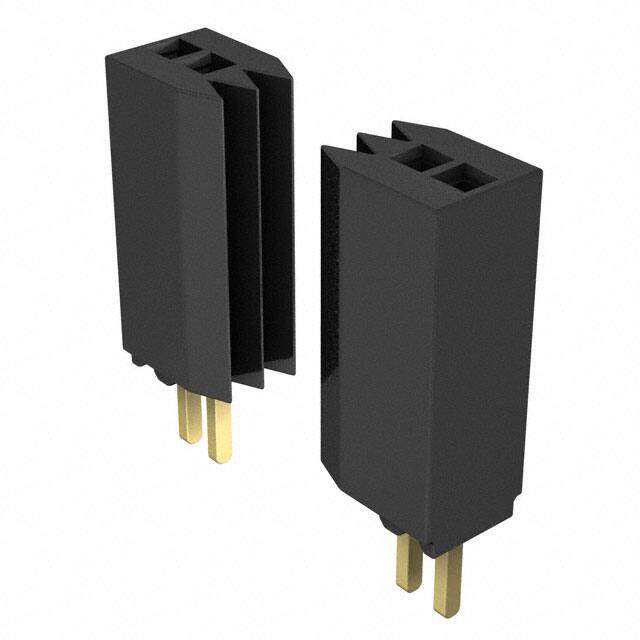

SAMTEC SMS-106-01-G-S Board-To-Board Connector, SMS Series, 6 Contacts, Receptacle, 1.27 mm, Through Hole, 1 Rows
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.1264
≥100 USD $0.9064
≥500 USD $0.7744
≥1000 USD $0.6072
≥3000 USD $0.572
Inventory: 637
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2000
Series SMS
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 6
Number of Rows 1
Additional Feature TIGER BUY
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5A per Contact
Orientation Straight
Depth 3.05mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.100 2.54mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender FEMALE
Contact Resistance 10mOhm
Mating Contact Pitch 0.05 inch
Max Current Rating 1A
Insertion Force-Max 2.224 N
Dimensions
Length 7.62mm
Plating Thickness 20μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
