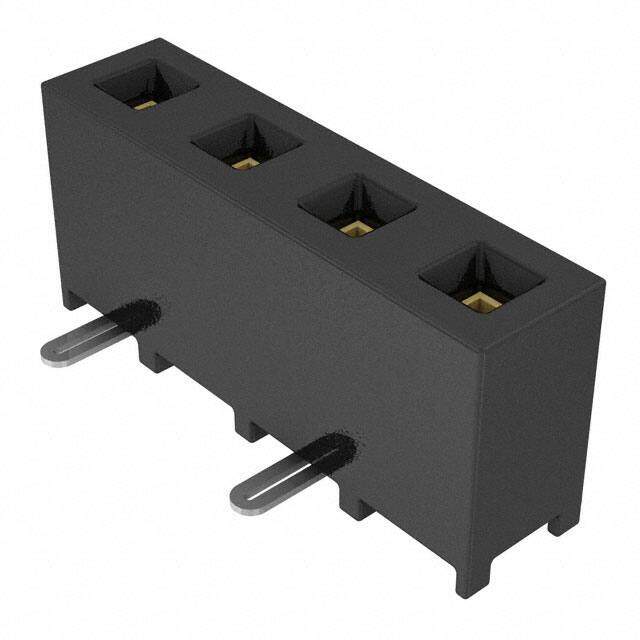

SMM-104-02-F-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 4 POS 2mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.7424
≥1 USD $1.7424
≥10 USD $1.3552
≥100 USD $1.0912
≥500 USD $0.9328
≥1000 USD $0.803
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2015
Series Tiger Eye? SMM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 4
Number of Rows 1
Gender Female
Voltage - Rated 350VAC
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.2A per Contact
Total Number of Contacts 4
Orientation Straight
Depth 2mm
Insulation Height 0.140 3.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern STAGGERED
Body Breadth 0.079 inch
Housing Color Black
Contact Resistance 10mOhm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 350V
Max Current Rating 3.9A
Dimensions
Length 8mm
Plating Thickness FLASH inch
Contact Finish Thickness - Mating 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
