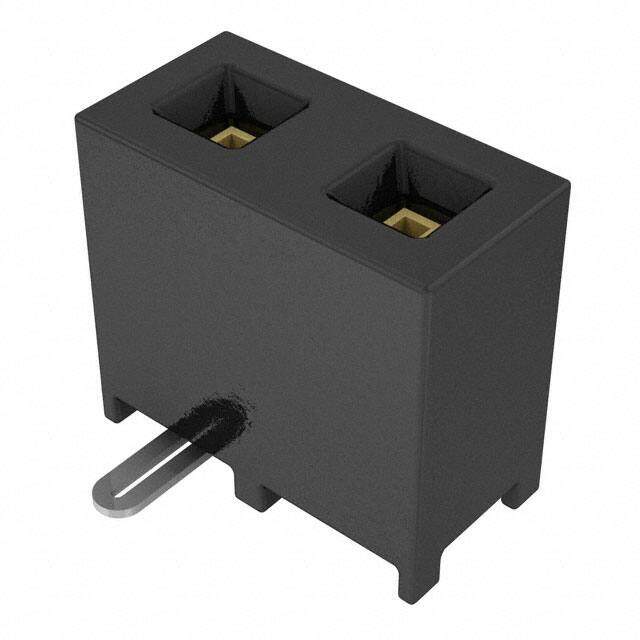

SMM-102-02-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 2MM 2POS SGL GOLD SMD
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.0296
≥1 USD $1.0296
≥10 USD $0.8712
≥100 USD $0.781968
≥500 USD $0.639778
≥1000 USD $0.5687
≥3000 USD $0.497605
Inventory: 494
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 4mm
Technical
Max Current Rating 3.9A
Max Voltage Rating (AC) 350V
Mating Contact Pitch 0.079 inch
Contact Resistance 10mOhm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.079 inch
PCB Contact Pattern STAGGERED
Contact Finish - Post Tin
Lead Pitch 2mm
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 3.9A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.140 3.56mm
Depth 4.32mm
Orientation Straight
Total Number of Contacts 2
Current Rating (Amps) 3.2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ELP, TIGER EYE
Voltage - Rated 350VAC
Number of Rows 1
Number of Positions 2
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Tiger Eye? SMM
Published 2000
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 5 Weeks
