SMH-105-02-G-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

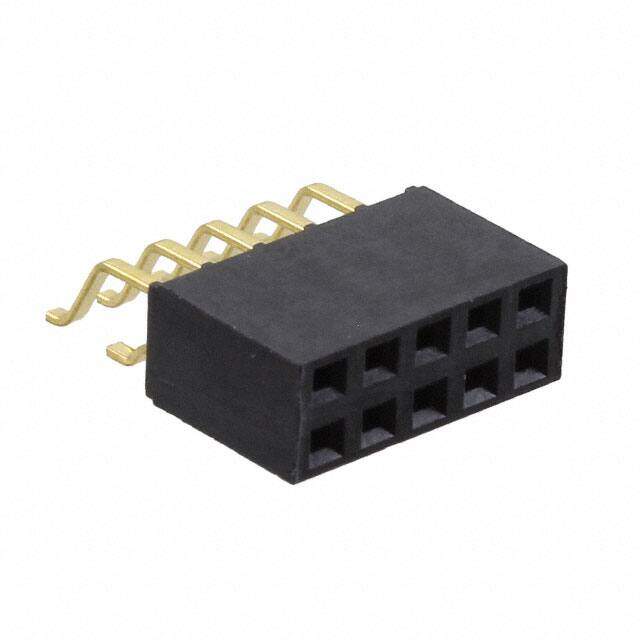

SAMTEC - SMH-105-02-G-D - Board-to-Board-Steckverbinder, abgewinkelt, 2.54 mm, 10 Kontakt(e), Buchse, Baureihe SMH
PDF
/
Buying Options
Total Price: USD $3.16
Unit Price: USD $3.1592
≥1 USD $3.1592
≥10 USD $2.5784
≥100 USD $2.1912
≥500 USD $1.944818
≥1000 USD $1.452009
≥3000 USD $1.364299
Inventory: 1024
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2013
Series SMH
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Number of Rows 2
Additional Feature TIGER BUY
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 10
Orientation Horizontal
Depth 15.75mm
Insulation Height 0.195 4.95mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.195 inch
Contact Gender FEMALE
Contact Resistance 10mOhm
Mating Contact Pitch 0.1 inch
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
Insertion Force-Max 1.668 N
Dimensions
Length 13.21mm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
