SLW-137-01-S-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

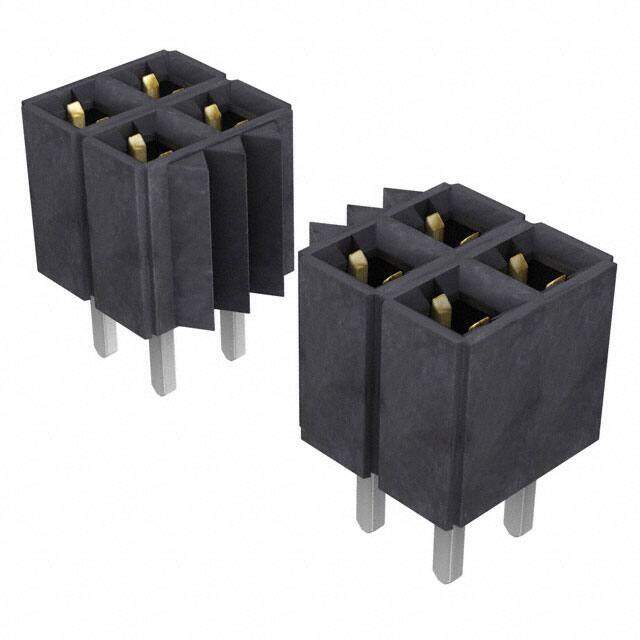

SAMTEC SLW-137-01-S-D Board-To-Board Connector, SLW Series, 74 Contacts, Receptacle, 2.54 mm, Through Hole, 2 Rows
PDF
/
Inventory: 6289
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Stack Height (Mating) 6.09mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Width 4.95mm
Length 94mm
Height 4.57mm
Technical
Withdrawl Force-Min 1.668 N
Insertion Force-Max 3.336 N
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Contact Resistance 10mOhm
Rated Current (Signal) 1A
Body Depth 0.18 inch
Housing Color Black
Contact Gender FEMALE
Body Breadth 0.195 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.180 4.57mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Number of Rows 2
Number of Positions 74
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SLW
Published 2000
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
