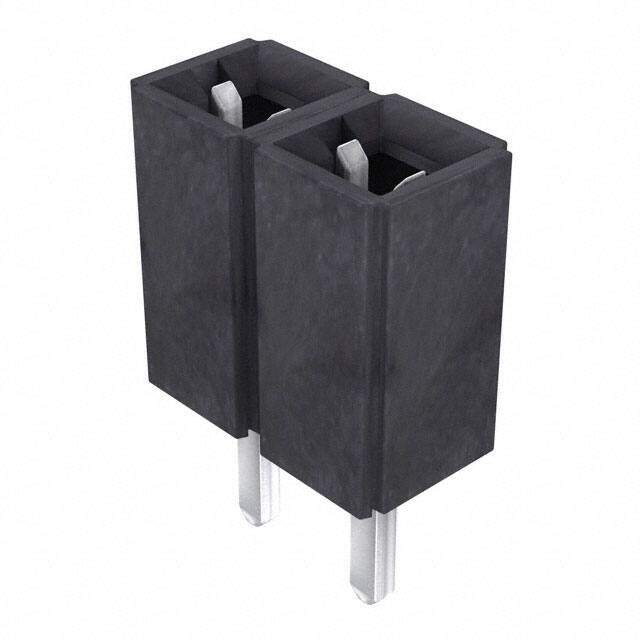

SLW-102-01-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 2POS 0.1 TIN PCB
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.25168
≥100 USD $0.195976
≥500 USD $0.167974
≥1000 USD $0.139973
≥3000 USD $0.119979
Inventory: 1403
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 0 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2000
Series SLW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle
Number of Positions 2
Number of Rows 1
Additional Feature TIGER BUY, LOW PROFILE
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Depth 2.54mm
Insulation Height 0.180 4.57mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 550V
Reliability COMMERCIAL
Contact Length - Post 0.115 2.92mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Contact Gender FEMALE
Housing Color Black
Contact Resistance 10mOhm
Max Voltage Rating (AC) 550V
Max Current Rating 7.1A
Insertion Force-Max 3.336 N
Dimensions
Length 5.08mm
Width 2.54mm
Stack Height (Mating) 6.09mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
