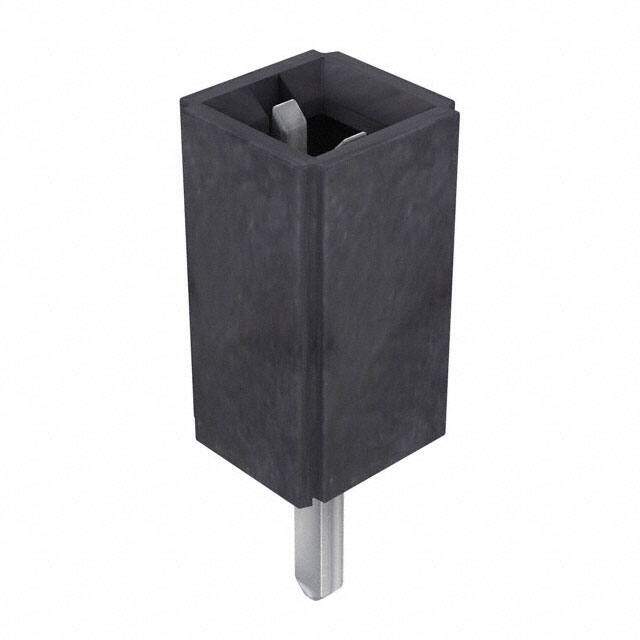

SLW-101-01-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100" 1POS SNGL TIN
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.1584
≥1 USD $0.1584
≥10 USD $0.13552
≥100 USD $0.104016
≥500 USD $0.087982
≥1000 USD $0.071984
≥3000 USD $0.063985
Inventory: 1884
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Stack Height (Mating) 6.09mm
Width 2.54mm
Length 2.54mm
Height 4.57mm
Technical
Insertion Force-Max 3.336 N
Rated Current (Signal) 5.2A
Housing Color Black
Contact Gender FEMALE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.115 2.92mm
Reliability COMMERCIAL
Voltage - Rated AC 550V
Reference Standard UL, CSA
Number of Conductors ONE
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.180 4.57mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TIGER BUY, LOW PROFILE
Number of Rows 1
Number of Positions 1
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SLW
Published 2000
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
