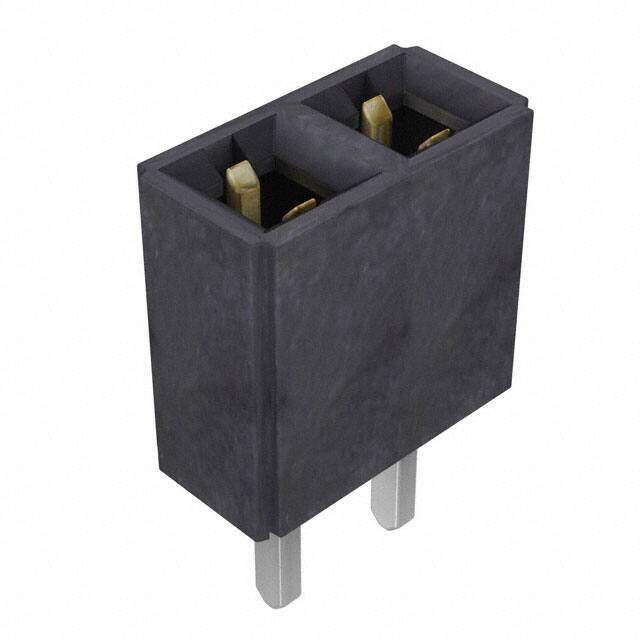

SLW-101-01-S-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100" 2POS DL 30GOLD
PDF
/
Inventory: 1112
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Body Breadth 0.195 inch
Contact Gender FEMALE
Housing Color Black
Rated Current (Signal) 1A
Contact Resistance 10mOhm
Max Voltage Rating (AC) 550V
Max Current Rating 7.1A
Polarization Key POLARIZED HOUSING
Insertion Force-Max 3.336 N
Withdrawl Force-Min 1.668 N
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.180 4.57mm
Depth 4.95mm
Orientation Straight
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Number of Rows 2
Number of Positions 2
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SLW
Published 2000
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 2.54mm
Width 4.95mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Stack Height (Mating) 6.09mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
