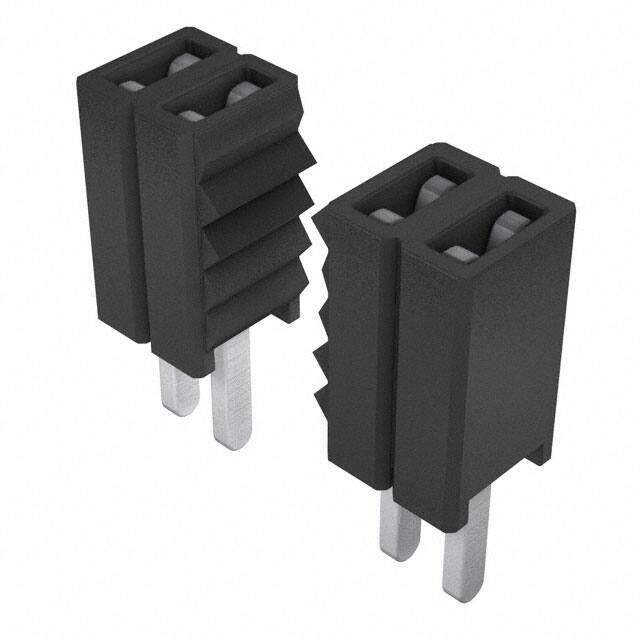

SLM-114-01-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
SAMTEC - SLM-114-01-S-S. - BUCHSE, 1.27 X 2.54MM, LOW, 1X14KONT
PDF
/
Buying Options
Total Price: USD $3.17
Unit Price: USD $3.167549
≥1 USD $3.167549
≥10 USD $2.988255
≥100 USD $2.819104
≥500 USD $2.659537
≥1000 USD $2.509001
Inventory: 3770
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 17.78mm
Technical
Insertion Force-Max 2.224 N
Mating Contact Pitch 0.05 inch
Contact Resistance 10mOhm
Rated Current (Signal) 1A
Contact Gender FEMALE
Contact Finish - Post Tin
Number Of PCB Rows 1
Contact Length - Post 0.115 2.92mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.180 4.57mm
Depth 2.54mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TIGER BUY CONTACT
Number of Rows 1
Number of Positions 14
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SLM
Published 2014
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
