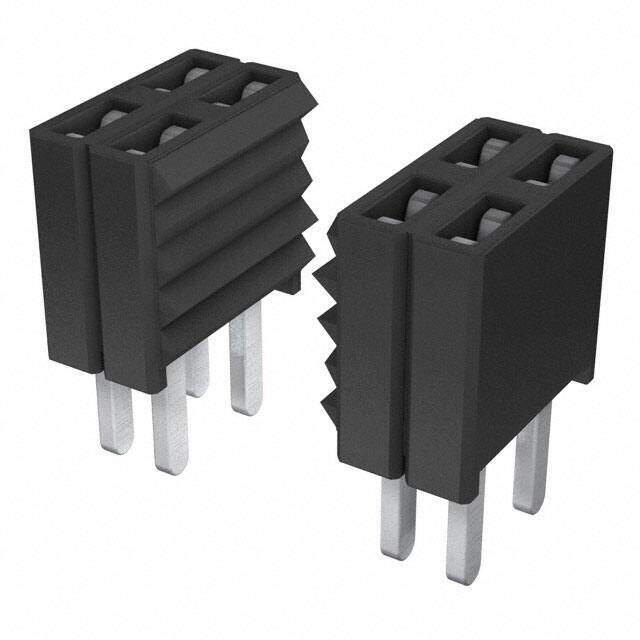

SLM-112-01-S-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Buying Options
Total Price: USD $5.06
Unit Price: USD $5.06404
≥1 USD $5.06404
≥10 USD $4.777401
≥100 USD $4.506978
≥500 USD $4.251872
≥1000 USD $4.011198
Inventory: 3566
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2000
Series SLM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 24
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Gender Receptacle
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Pitch 1.27mm
Orientation Straight
Depth 5.08mm
Insulation Height 0.180 4.57mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.115 2.92mm
Number of Contacts 24
Contact Finish - Post Tin
Housing Color Black
Contact Resistance 10mOhm
Dimensions
Length 15.24mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
