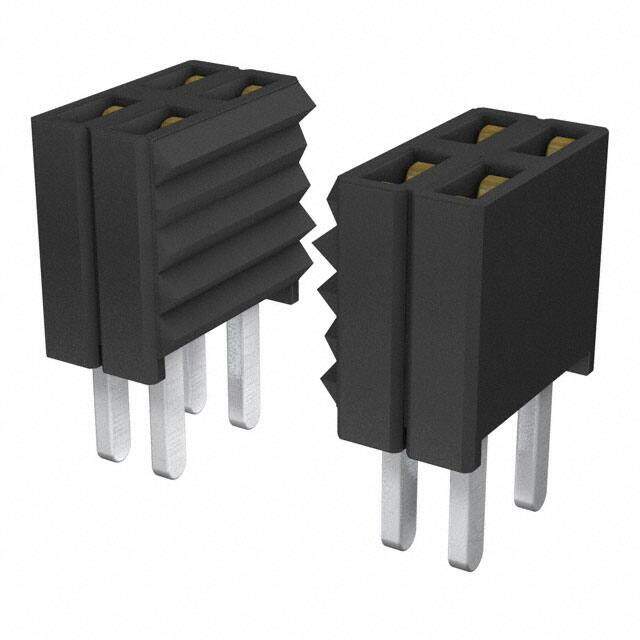

SLM-110-01-L-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Micro Socket Strip SKT 20 POS 1.27mm Solder ST Thru-Hole Tube
PDF
/
Inventory: 7790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series SLM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 20
Number of Rows 2
Gender Female
Additional Feature TIGER BUY
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.180 4.57mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.5 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.115 2.92mm
Number Of PCB Rows 2
Contact Finish - Post Tin
Body Depth 0.18 inch
Contact Resistance 10mOhm
Mating Contact Pitch 0.05 inch
Withdrawl Force-Min 1.668 N
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
RoHS Status ROHS3 Compliant
