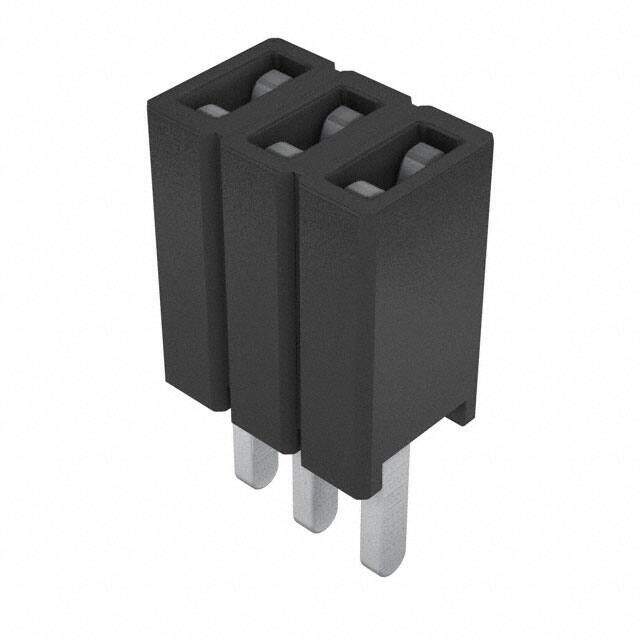

SLM-103-01-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
SAMTEC SLM-103-01-S-S. Board-To-Board Connector, Low Profile, SLM Series, 3 Contacts, Receptacle, 1.27 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.572
≥100 USD $0.4664
≥500 USD $0.396
≥1000 USD $0.359568
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2014
Series SLM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 3
Number of Rows 1
Additional Feature TIGER BUY CONTACT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.180 4.57mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.115 2.92mm
Number Of PCB Rows 1
Contact Finish - Post Tin
Contact Gender FEMALE
Rated Current (Signal) 1A
Contact Resistance 10mOhm
Mating Contact Pitch 0.05 inch
Insertion Force-Max 2.224 N
Dimensions
Length 3.81mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
